On Nov 28, I rebooted r730-01 after an update, and it didn’t come back. At all.
I had inserted 2x 4TB SSDS a few days earlier. It seems they contained remnants of a zroot. The host was trying to boot from them. I couldn’t get the host to boot from the real zroot. It frustrated me.
I gave up and went to sleep later. The next morning, I moved those two drives into r730-04 and rebooted r730-01 – which recovered gracefully.
My goal now: reproduce the situation on r730-04 and see if I can resolve the problem from the console without removing the drives. And without booting a live boot image (e.g. thumbdrive).
In this post:
- FreeBSD 14.3
- mfsBSD 14.2
Does it boot?

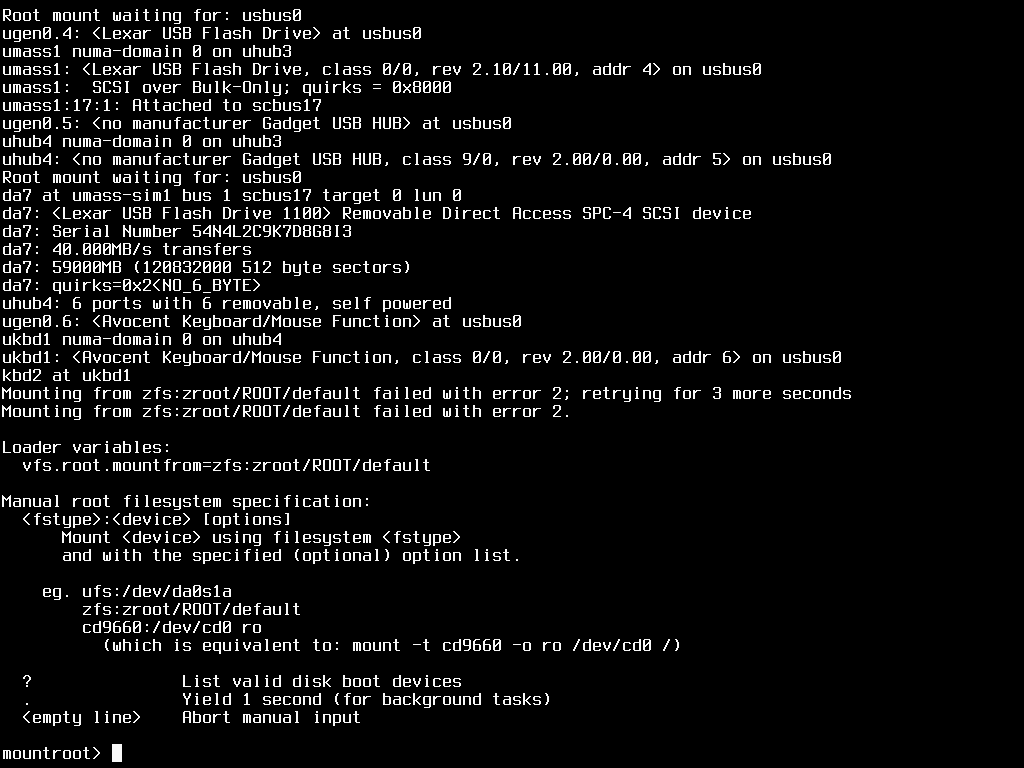

No, it does not boot. I get this:
From here, I’m not sure what to do. My goal with this post: find a way to fix this without resorting to a live thumbdrive. That is, fix this from the console.
Is that possible?
What’s in the box?
When booting mfsBSD, I dropped into the loader prompted and entered this:
set hw.mfi.mrsas_enable="1" boot
Then I ssh’d in as root (password is mfsroot).
From mfsBSD, I see this:
root@mfsbsd:~ # zpool import
pool: zroot
id: 17107398103472157640
state: DEGRADED
status: One or more devices contains corrupted data.
action: The pool can be imported despite missing or damaged devices. The
fault tolerance of the pool may be compromised if imported.
see: https://openzfs.github.io/openzfs-docs/msg/ZFS-8000-4J
config:
zroot DEGRADED
mirror-0 DEGRADED
da0p3 UNAVAIL invalid label
da1p3 UNAVAIL invalid label
da3p3 ONLINE
pool: zroot_30G_drives
id: 244204476102814311
state: ONLINE
action: The pool can be imported using its name or numeric identifier.
config:
zroot_30G_drives ONLINE
mirror-0 ONLINE
da4p3 ONLINE
da5p3 ONLINE
pool: data04
id: 14613959245391720618
state: ONLINE
action: The pool can be imported using its name or numeric identifier.
config:
data04 ONLINE
mirror-0 ONLINE
diskid/DISK-S757NS0Y700758M ONLINE
diskid/DISK-S757NS0Y700760R ONLINE
pool: zroot
id: 16510343806874404582
state: ONLINE
action: The pool can be imported using its name or numeric identifier.
config:
zroot ONLINE
mirror-0 ONLINE
da0p3 ONLINE
da1p3 ONLINE
pool: zroot
id: 16789754035394283994
state: ONLINE
action: The pool can be imported using its name or numeric identifier.
config:
zroot ONLINE
mirror-0 ONLINE
ada0p3 ONLINE
ada1p3 ONLINE
root@mfsbsd:~ #
I know that last zroot, on ada0/1, is the one I want to boot from. I recognize the device names associated with the SATADOM devices attached directly to the m/b of the server.
root@mfsbsd:~ # grep ada0 /var/log/messages Dec 2 17:54:30 mfsbsd kernel: ada0 at ahcich10 bus 0 scbus13 target 0 lun 0 Dec 2 17:54:30 mfsbsd kernel: ada0:ACS-2 ATA SATA 3.x device Dec 2 17:54:30 mfsbsd kernel: ada0: Serial Number 20170718AA0000185541 Dec 2 17:54:30 mfsbsd kernel: ada0: 600.000MB/s transfers (SATA 3.x, UDMA6, PIO 1024bytes) Dec 2 17:54:30 mfsbsd kernel: ada0: Command Queueing enabled Dec 2 17:54:30 mfsbsd kernel: ada0: 118288MB (242255664 512 byte sectors) Dec 2 17:54:30 mfsbsd kernel: ses1: ada0,pass7 in 'Slot 04', SATA Slot: scbus13 target 0 root@mfsbsd:~ # grep ada1 /var/log/messages Dec 2 17:54:30 mfsbsd kernel: ada1 at ahcich11 bus 0 scbus14 target 0 lun 0 Dec 2 17:54:30 mfsbsd kernel: ada1: ACS-2 ATA SATA 3.x device Dec 2 17:54:30 mfsbsd kernel: ada1: Serial Number 20170718AA0000185552 Dec 2 17:54:30 mfsbsd kernel: ada1: 600.000MB/s transfers (SATA 3.x, UDMA6, PIO 1024bytes) Dec 2 17:54:30 mfsbsd kernel: ada1: Command Queueing enabled Dec 2 17:54:30 mfsbsd kernel: ada1: 118288MB (242255664 512 byte sectors) Dec 2 17:54:30 mfsbsd kernel: ses1: ada1,pass8 in 'Slot 05', SATA Slot: scbus14 target 0 root@mfsbsd:~ #
For the zpools shown above, here are the partitions:
line 1 – zroot I don’t want
This is all messed up. Why is da3 in there? Oh wait, perhaps brought in by device name instead of gpt label?
root@mfsbsd:~ # gpart show da0 da1 da3
=> 40 468862048 da0 GPT (224G)
40 1024 1 freebsd-boot (512K)
1064 984 - free - (492K)
2048 4194304 2 freebsd-swap (2.0G)
4196352 464664576 3 freebsd-zfs (222G)
468860928 1160 - free - (580K)
=> 40 468862048 da1 GPT (224G)
40 1024 1 freebsd-boot (512K)
1064 984 - free - (492K)
2048 4194304 2 freebsd-swap (2.0G)
4196352 464664576 3 freebsd-zfs (222G)
468860928 1160 - free - (580K)
=> 34 7814037101 da3 GPT (3.6T)
34 17311710 - free - (8.3G)
17311744 1936213384 3 freebsd-zfs (923G)
1953525128 5860512007 - free - (2.7T)
root@mfsbsd:~ #
line 17 – zroot_30G_drives
This looks valid, but it’s not the zroot I want.d
root@mfsbsd:~ # gpart show da4 da5
=> 40 62533216 da4 GPT (30G)
40 2008 - free - (1.0M)
2048 409600 1 efi (200M)
411648 16777216 2 freebsd-swap (8.0G)
17188864 45344392 3 freebsd-zfs (22G)
=> 40 62533216 da5 GPT (30G)
40 2008 - free - (1.0M)
2048 409600 1 efi (200M)
411648 16777216 2 freebsd-swap (8.0G)
17188864 45344392 3 freebsd-zfs (22G)
root@mfsbsd:~ #
line 28 – data04
Now I need to convert diskid/DISK-S757NS0Y700758M to a device name. For that, I used glabel list | less
and searched fort that text. I found this:
Geom name: da3 Providers: 1. Name: diskid/DISK-S757NS0Y700758M Mediasize: 4000787030016 (3.6T)
And this:
Geom name: da2 Providers: 1. Name: diskid/DISK-S757NS0Y700760R
Which leads to this command:
root@mfsbsd:~ # gpart show da3 da2
=> 34 7814037101 da3 GPT (3.6T)
34 17311710 - free - (8.3G)
17311744 1936213384 3 freebsd-zfs (923G)
1953525128 5860512007 - free - (2.7T)
gpart: No such geom: da2.
line 39- zroot (for da3/da2) – I don’t want this one
gpart show da0 da1
root@mfsbsd:~ # gpart show da0 da1
=> 40 468862048 da0 GPT (224G)
40 1024 1 freebsd-boot (512K)
1064 984 - free - (492K)
2048 4194304 2 freebsd-swap (2.0G)
4196352 464664576 3 freebsd-zfs (222G)
468860928 1160 - free - (580K)
=> 40 468862048 da1 GPT (224G)
40 1024 1 freebsd-boot (512K)
1064 984 - free - (492K)
2048 4194304 2 freebsd-swap (2.0G)
4196352 464664576 3 freebsd-zfs (222G)
468860928 1160 - free - (580K)
line 50 – zroot ada0/ada1 – THIS is the zroot I want to boot from
root@mfsbsd:~ # gpart show ada0 ada1
=> 40 242255584 ada0 GPT (116G)
40 532480 1 efi (260M)
532520 2008 - free - (1.0M)
534528 33554432 2 freebsd-swap (16G)
34088960 208164864 3 freebsd-zfs (99G)
242253824 1800 - free - (900K)
=> 40 242255584 ada1 GPT (116G)
40 532480 1 efi (260M)
532520 2008 - free - (1.0M)
534528 33554432 2 freebsd-swap (16G)
34088960 208164864 3 freebsd-zfs (99G)
242253824 1800 - free - (900K)
